X-LAB

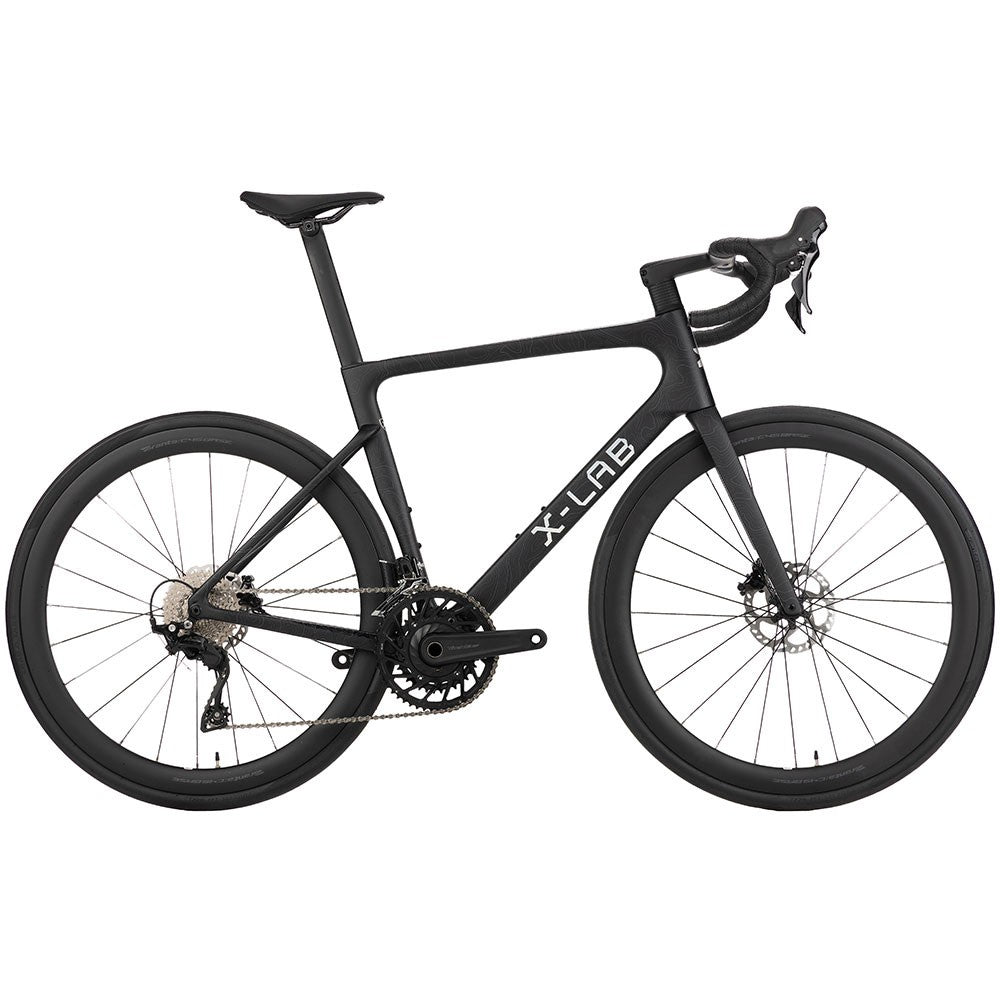

X-LAB RS7 105 Di2 Singularity Black

X-LAB RS7 105 Di2 Singularity Black

$4,999.99 NZD
$4,999.99 NZD
Sale Sold out
Shipping calculated at checkout.
Size

Low stock: 1 left

Description



Model RS7 105 Di2
Frame X-LAB Carbon Frame
Fork X-LAB Carbon Fork, 100x12mm Thru-axle
Stem Branta Carbon Integrated
Handlebar
Seatpost XDS Carbon Seatpost, Aero Shape
Rear Derailleur Shimano 105 Di2 RD-R7150
Front Derailleur Shimano 105 Di2 FD-R7150
Shifters Shimano 105 Di2 ST-R7170
Brakes Shimano 105 BR-R7170
Cassette Shimano 105 CS-R7101, 11-34T
Crankset Branta Aluminum Power Meter Crankset, 52-36T, 24mm Steel Spindle, Apple Find My Anti-Theft Technology
Bottom Bracket BSA 24mm
Rotors Shimano SM-RT70, Front: 160mm / Rear: 140mm
Chain Shimano CN-M7100
Wheelset Branta C45 Base, Stainless Steel Spokes
Tires Branta R301, 700x30C, 60TPI
Saddle Branta R302, Steel Rails
Frame Size XS S M L XL XXL
A Seat Tube Length (mm) 420 440 470 490 510 530
B Top Tube Length (mm) 500 515 531 550 570 590
C Head Tube Length (mm) 130 135 145 160 175 200
D Seat Tube Angle (deg) 75 75 75 74 74 74
E Head Tube Angle (deg) 70 72 73 73 73 74
F Chainstay Length (mm) 410 410 410 410 410 410
G Wheelbase (mm) 973 976 982 993 1006 1016
H Fork Rake/Offset (mm) 55 55 45 45 45 45
I BB Drop (mm) 72 72 70 70 68 68
J Stack (mm) 526 535 546 561 574 602
K Reach (mm) 360 370 380 390 400 412
L Front Center (mm) 574 577 581 593 606 616
O Stand-over Height (mm) 737 752 772 789 807 830
Trail (mm) 65 58 62 60 58 52
Components XS S M L XL XXL
Stem 90 100 110 110 120 120
Handlebar 360 380 380 380 400 400
Crankset 165 165 170 170 172.5 172.5
Seat Post 300 300 300 350 400 400
Sizing Size XS S M L XL XXL
Recommended Rider Height 148 cm – 158 cm
4'10" - 5'2"		 158 cm – 168 cm
5'2" - 5'6"		 168 cm – 176 cm
5'6" - 5'9"		 176 cm – 183 cm
5'9" - 6'0"		 183 cm – 191 cm
6'0" - 6'3"		 191 cm – 202 cm
6'3" - 6'7"
