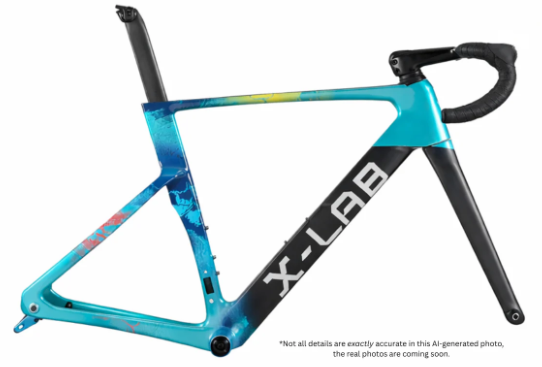

X-LAB AD9 Frameset Team Replica

$4,299.99 NZD

Sale Sold out

Shipping calculated at checkout.

Size XS S M L XL

Out of stock

The AD9 is X-LAB's most aerodynamic bike, sharing the same frame as the Astana Pro Team. Wind tunnel tested, it rivals top aero bikes on the market. Perfect for flat sprints and racing with striking Astana team paintwork.

Frame	Size	XS	S	M	L	XL
A	Seat Tube Length (mm)	470	495	515	540	565
B	Top Tube Length (mm)	504	523	540	559	579
C	Head Tube Length (mm)	105	118	130	148	171
D	Seat Tube Angle (deg)	75	75	74	74	73
E	Head Tube Angle (deg)	71	72	73	73	73
F	Chainstay Length (mm)	410	410	410	410	410
G	Wheelbase (mm)	970	978	982	992	1007
H	Fork Rake/Offset (mm)	48	48	43	43	43
I	BB Drop (mm)	72	72	70	70	70
J	Stack (mm)	505	520	534	553	575
K	Reach (mm)	371	379	387	395	405
L	Front Center (mm)	575	582	583	592	607
	Trail (mm)	67	63	64	61	59

Components	Size	XS	S	M	L	XL
	Stem	90	90	100	100	120
	Handlebar	360	360	380	380	400
	Seat Post	300	300	300	300	300
