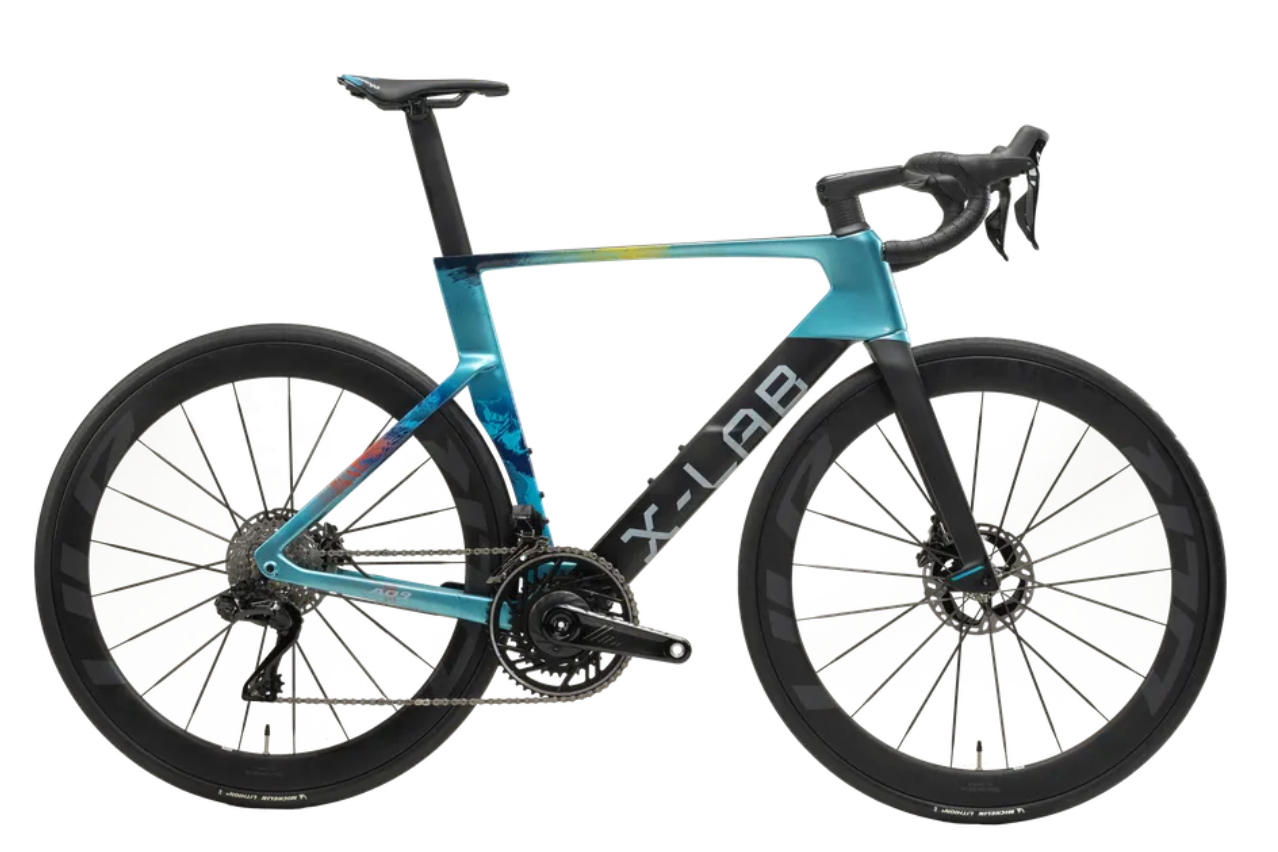

X-LAB AD9 Dura Ace Di2 Team Replica

X-LAB AD9 Dura Ace Di2 Team Replica

$11,999.99 NZD
$11,999.99 NZD
Sale Sold out
Shipping calculated at checkout.
Size

Low stock

The AD9 is X-LAB's most aerodynamic bike, sharing the same frame as the Astana Pro Team. Wind tunnel tested, it rivals top aero bikes on the market. Perfect for flat sprints and racing with striking Astana team paintwork.



Model AD9
Frame XDS Carbon Frame
Fork XDS Carbon Fork, 100x12mm Thru-axle
Stem Branta Carbon Integrated
Handlebar
Seatpost XDS Carbon Seatpost, Aero Shape
Rear Derailleur Shimano Dura-Ace RD-R9250
Front Derailleur Shimano Dura-Ace FD-R9250
Shifter Shimano Dura-Ace ST-R9270
Brakes Shimano Dura-Ace BR-R9270
Cassette Shimano Dura-Ace CS-R9200, 11-34T
Crankset Branta Carbon Powermeter Crankset, 52-36T, 29mm Aluminum Spindle
BB T47 29mm
Rotors Shimano SM-MT900, F:160mm R:160mm
Chain Shimano CN-M9100
Wheelset Branta C50 ULR, Carbon Spokes
Tires Michelin Pro 5 700x28C
Saddle Prologo Nago R4 PAS, Carbon Rails(Team Replica)
Weight 6.82KG (Size L)
Frame Size XS S M L XL
A Seat Tube Length (mm) 470 495 515 540 565
B Top Tube Length (mm) 504 523 540 559 579
C Head Tube Length (mm) 105 118 130 148 171
D Seat Tube Angle (deg) 75 75 74 74 73
E Head Tube Angle (deg) 71 72 73 73 73
F Chainstay Length (mm) 410 410 410 410 410
G Wheelbase (mm) 970 978 982 992 1007
H Fork Rake/Offset (mm) 48 48 43 43 43
I BB Drop (mm) 72 72 70 70 70
J Stack (mm) 505 520 534 553 575
K Reach (mm) 371 379 387 395 405
L Front Center (mm) 575 582 583 592 607
Trail (mm) 67 63 64 61 59
Components Size XS S M L XL
Stem 90 90 100 100 120
Handlebar 360 360 380 380 400
Crankset 160 160 165 165 170
Seat Post 300 300 300 300 300
