X-LAB

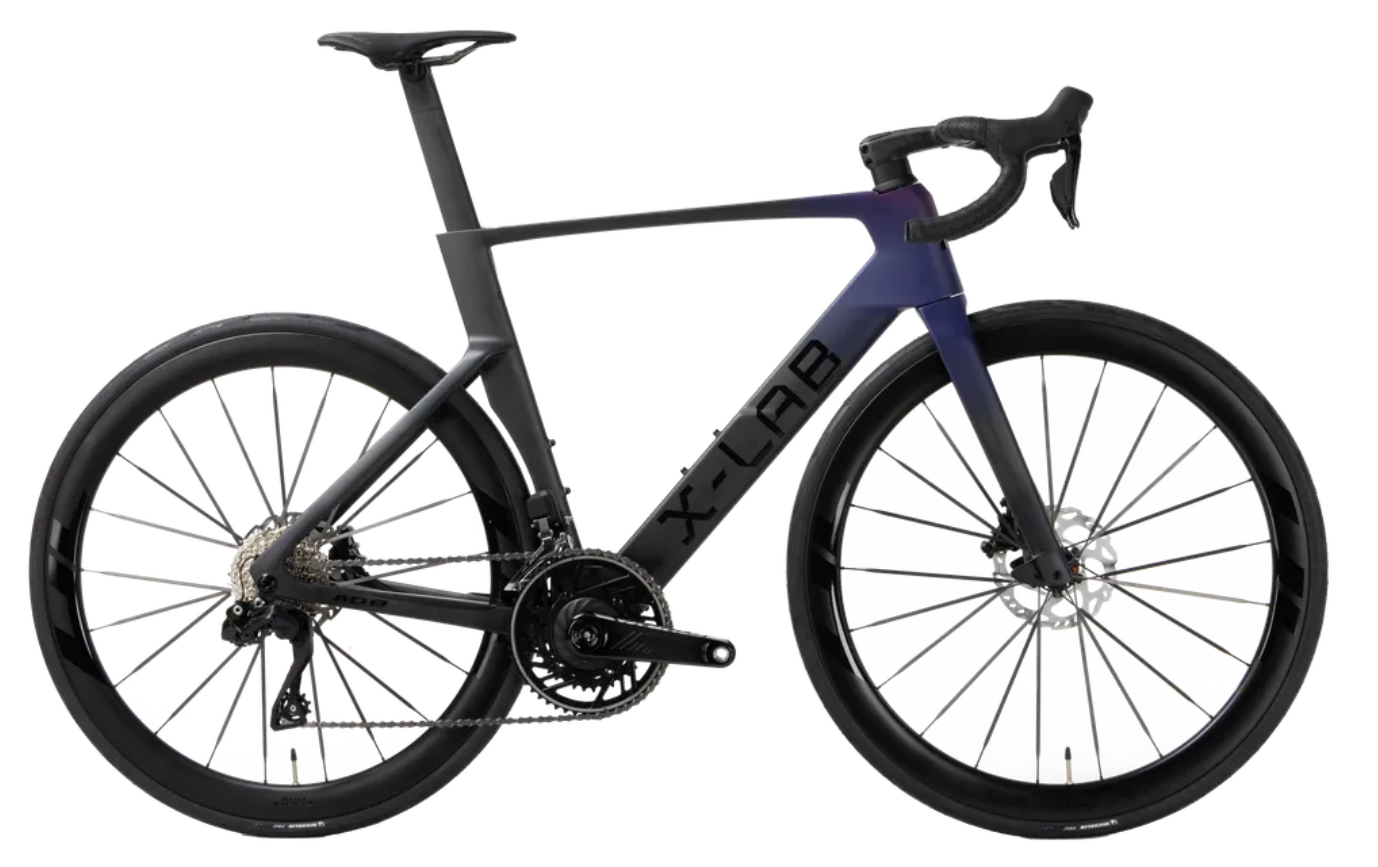

X-LAB AD8 105 Di2 Hawkeye Purple/Black

X-LAB AD8 105 Di2 Hawkeye Purple/Black

$7,399.99 NZD
$7,399.99 NZD
Sale Sold out
Shipping calculated at checkout.
Size

Low stock

AD8 is X-LAB’s aero machine carved from T800 carbon—light, sharp, and built to cut through wind. Its streamlined tube shapes and clean integration turn power into pure forward speed, while the balanced race geometry keeps the bike steady when the pace rises. Fast in a sprint, efficient on long efforts, AD8 brings a precise, modern aero feel to every ride.



Model AD8
Frame XDS Carbon Frame
Fork XDS Carbon Fork, 100x12mm Thru-axle
Stem Branta Carbon Integrated
Handlebar
Seatpost XDS Carbon Seatpost, Aero Shape
Rear Derailleur Shimano 105 DI2 RD-R7150
Front Derailleur Shimano 105 DI2 FD-R7150
Shifter Shimano 105 ST-R7120
Brakes Shimano 105 BR-R7170
Cassette Shimano 105 CS-R7101, 11-34T
Crankset Branta Carbon Powermeter Crankset, 52-36T, 29mm Aluminum Spindle
BB T47 29mm
Rotors Shimano SM-RT70, F:160mm R:160mm
Chain Shimano CN-M7100
Wheelset Branta C45 UL, Carbon Spokes
Tires Michelin Pro 5 700x28C
Saddle Selle Italia SLR Boost, Carbon Rails
Weight 7.41KG (Size L)



Frame Size XS S M L XL
A Seat Tube Length (mm) 470 495 515 540 565
B Top Tube Length (mm) 504 523 540 559 579
C Head Tube Length (mm) 105 118 130 148 171
D Seat Tube Angle (deg) 75 75 74 74 73
E Head Tube Angle (deg) 71 72 73 73 73
F Chainstay Length (mm) 410 410 410 410 410
G Wheelbase (mm) 970 978 982 992 1007
H Fork Rake/Offset (mm) 48 48 43 43 43
I BB Drop (mm) 72 72 70 70 70
J Stack (mm) 505 520 534 553 575
K Reach (mm) 371 379 387 395 405
L Front Center (mm) 575 582 583 592 607
Trail (mm) 67 63 64 61 59
Components Size XS S M L XL
Stem 90 90 100 100 120
Handlebar 360 360 380 380 400
Crankset 160 160 165 165 170
Seat Post 300 300 300 300 300
