Look

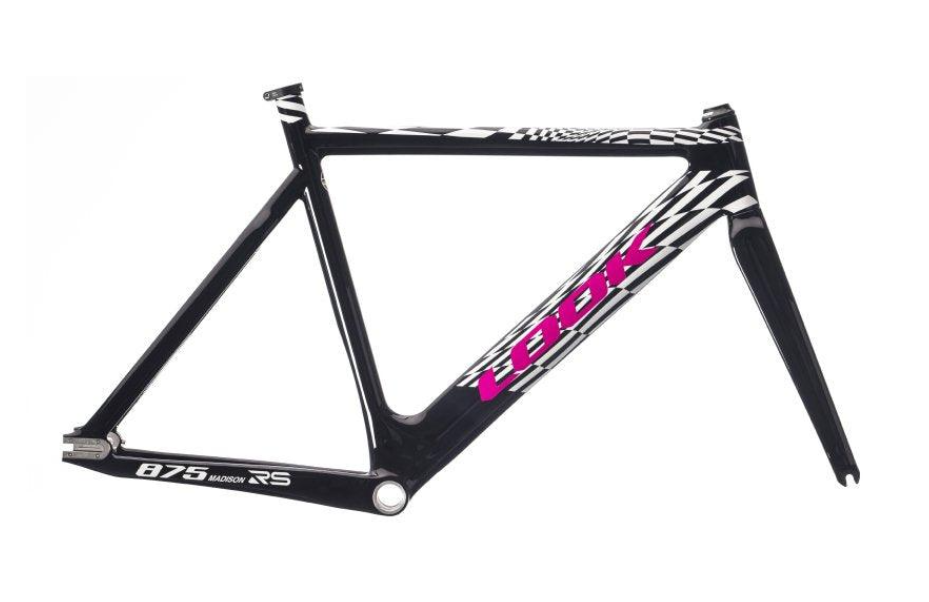

Look 875 Madison Frameset

Look 875 Madison Frameset

$3,299.99 NZD
$3,299.99 NZD
Sale Sold out
Shipping calculated at checkout.
Size

Low stock

The 875 MADISON RS is designed to be as efficient on the road as on the track, and our LOOK CRIT TEAM will not tell you otherwise. Thanks to the brake-ready fork and rear bridge, you can safely cruise the city streets on your fixed gear or single speed machine. A twist of an Allen key is enough to remove the brakes and hit the boards of the velodrome. Representing the versatility and performance of the LOOK brand, this limited edition invites does nothing more and nothing less than invite you to imitate our CRIT team...

875 MADISON RS

Wheels diameter : 676 mm / 26,6 inch

XS S M L XL
Stack 480 495 510 525 540
Reach 360 385 410 435 460
I - Head tube (°) 73 73 73 73 73
J - Seat tube (°) 73.5 73.5 73.5 73.5 73.5
A - Seat tube 500 525 550 570 590
B - Top Tube horizontal 502 531.5 561 590.5 620
C - Front Center 539 568 598 627 657
D - Trail 59 59 59 59 59
F - Fork offset 43 43 43 43 43
G - Chainstays 380 380 380 380 380
K - Head tube 95 110.5 126 142 157.5
L - Fork 368 368 368 368 368
HAV 50 50 50 50 50
Standover 745 760 774 790 805
