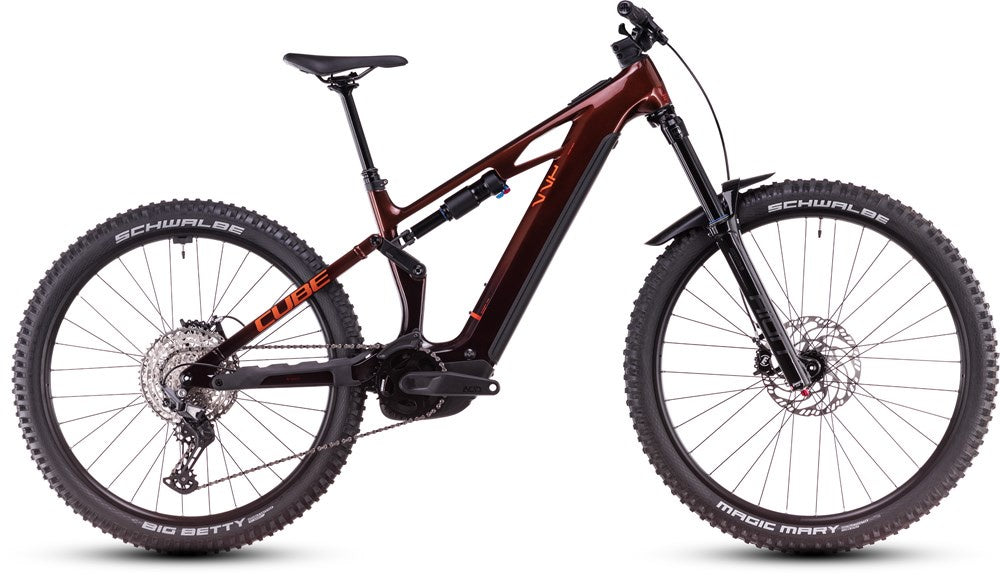

Cube Stereo Hybrid ONE77 HPC Race 800 liquidorange´n´orange

You can tell from its purposeful stance and mullet wheel sizing that the Stereo Hybrid ONE77 HPC Race means business. But the devil, as always, is in the details. The Bosch CX drive and PowerTube battery work with Shimano's reliable Deore 12-speed gears to swallow tricky routes whole. Meanwhile, a pair of Magura MT Thirty hydraulic disc brakes and 2.4in Schwalbe Magic Mary and Big Betty tyres have the grip you need to stay in control, whatever the trail throws your way. A Suntour Aion 38X fork and Edge Evo 2 CR shock help keep the rubber side down and rolling. And, with a remote dropper post thrown into the mix, the only question is which line you'll take back down the mountain.

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. Integrated Cable Routing for super-clean looks and reduced maintenance, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste.  A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough

Specifications

FRAME

Material: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle Features: Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

SIZE

Available Sizes: S, M, L, XL

SUSPENSION

Fork: SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm

Rear Shock: SR Suntour Edge EVO 2CR 230x65mm Bearings: Front: 30x8mm, Rear: DU-Bushing 12.7mm

Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

E-BIKE SYSTEM

Drive Unit: Gen 5 Bosch Drive Unit Performance Line CX, Smart System  32kph

Battery: Bosch PowerTube 800  Charger: Bosch 2A Display: Bosch System Control incl. Mini Remote

COCKPIT

Stem: CUBE Performance Stem E-MTB 35, FPI-Link

Handlebar: CUBE Rise Trail Bar 35

Grips: ACID Disrupt, Soft Compound

DRIVETRAIN & BRAKES

Rear Derailleur: Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed

Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Shifters: Shimano Deore SL-M6100, Rapidfire-Plus

Brake System: Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) Crankset: ACID MTB Hybrid Pro, 36T

Cassette: Shimano Deore CS-M6100, 10-51T

Chain: KMC e12

WHEELS

Rims: CUBE EX30, 32H, Disc, Tubeless Ready

Front Hub: CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt Rear Hub: CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt

Front Tyre: Schwalbe Magic Mary, Performance, 2.4

Rear Tyre: Schwalbe Big Betty, Performance, 2.4

FINISHING KIT

Saddle: ACID Venec Lite

Seat Post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

Seat Clamp: CUBE Semi-Integrated

WEIGHT & MISC

Weight: 25.2 kg

Maximum Rider Weight: 150 kg

Colour: liquidorange´n´orange
