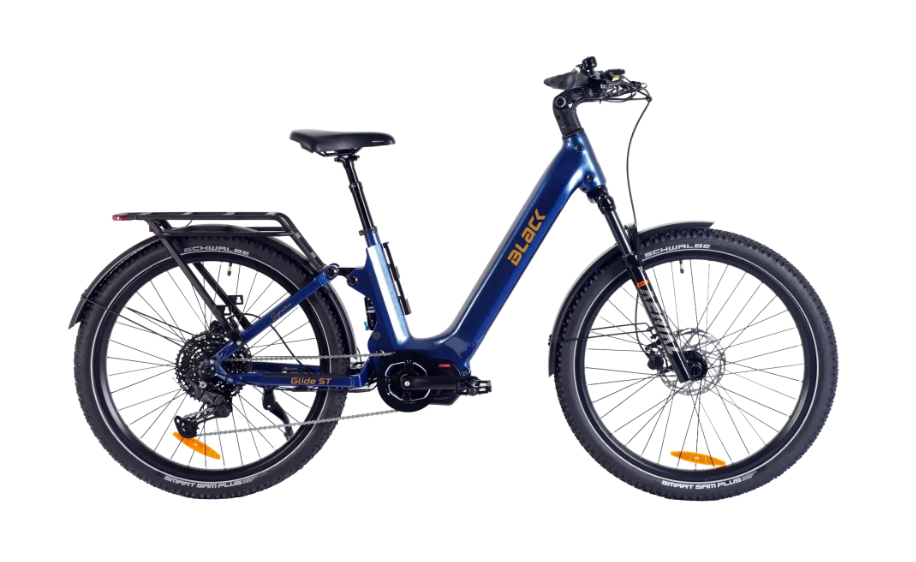

BLACK Glide ST E-Bike

E-Bike System

• Motor: ANANDA M100 mid motor, 48V 250W
• Battery: 48V 15AH, 720WH (LG 5200mAh cells)
• Display: LCD colour screen integrated with the stem
• Charger: 54.6V / 3A
• Controller: Sine-wave intelligent controller, integrated in the motor
• PAS Sensor: Torque sensor, integrated in the motor
• Throttle: Yes
• Max Speed: 40km/h

Frame & Suspension

• Frame: 6061 Aluminium Alloy, Step Through, 27.5"
• Fork: RST AERIAL AIR lockable suspension fork, 100mm travel
• Rear Shock: RS20-RAIDON-LO AIR

Cockpit

• Handlebar: 6061 Aluminium Alloy, 700mm
• Stem: 6061 Aluminium Alloy, tool adjustable
• Headset: Internal wiring
• Grips: Velo

Brakes & Drivetrain

• Brakes: Tektro E3520 Hydraulic disc, power cut-off brake lever
• Rear Derailleur: Shimano DEORE 10-Speed
• Shifters: Shimano SL-M6000-10R
• Freewheel: Shimano 11-36T
• Crankset: Prowheel 36T, 170mm
• Chain: KMC e10

Wheels

• Rims: 36H x 13G double wall, black stainless steel spokes
• Tyres: Schwalbe HURRICANE 27.5 x 2.4
• Front Hub: Thru-axle
• Rear Hub: Cassette disc brake

Finishing Kit

• Saddle: Selle Royal
• Seat Post: Dropper with cable remote, 150mm travel
• Pedals: Feimin FP-922, aluminium alloy
• Front Light: Buchel SHINY 50 with wire
• Rear Light: Integrated in rear carrier
• Mudguards: Aluminium alloy
• Carrier: Aluminium alloy, MIK compatible
• Kickstand
