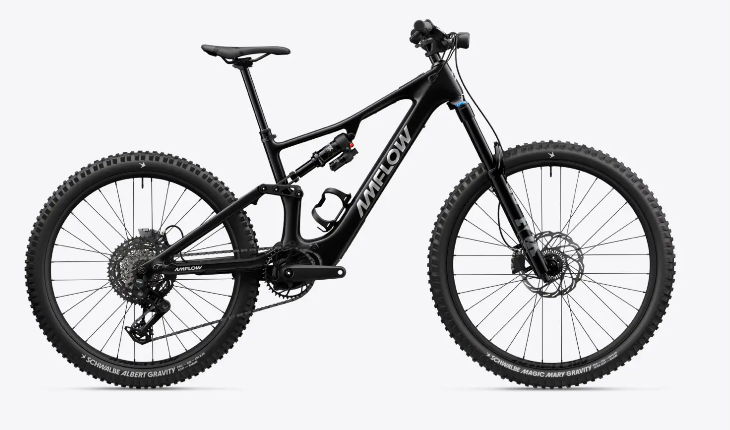

Amflow PX Carbon Frame
Phantom Black
40 adjustable geometry configurations *
Compatible with 27.5″ and 29″ rear wheels
- The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
E-Bike System
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 700Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
Rear shock
FOX Float X Performance
2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
Fork
FOX 36 Performance
160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
