Wattwheels

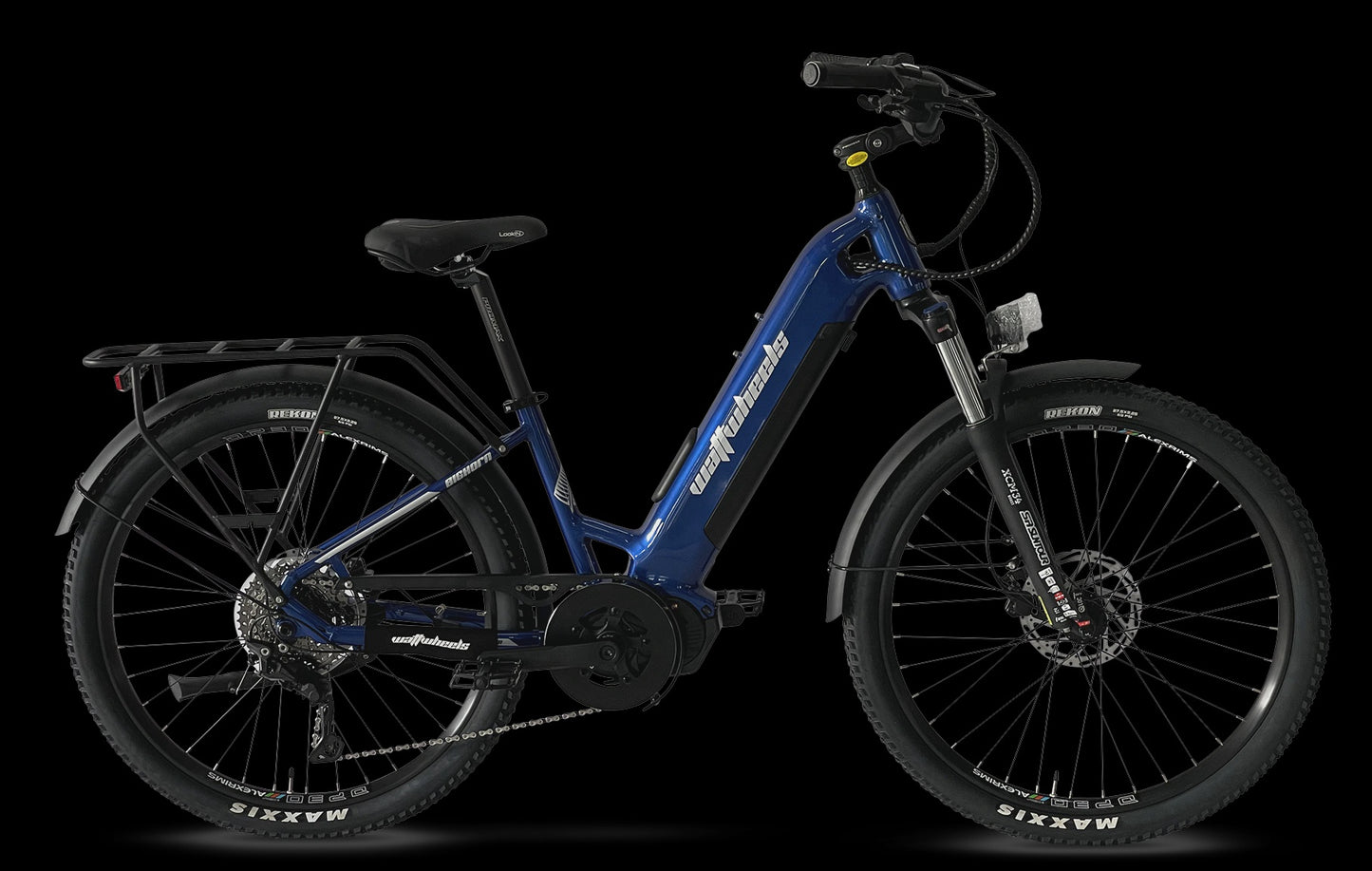

24 WW Bighorn Low Step Deep Sea Blue

24 WW Bighorn Low Step Deep Sea Blue

Regular price $4,999.99 NZD
Regular price Sale price $4,999.99 NZD
Sale Sold out
Shipping calculated at checkout.
Size

Out of stock

Features

The eagerly anticipated Bighorn, set for release in June 2024, is poised to redefine excellence in the Trail and Daily use category, as recognized by Consumer.

Retaining its signature low step frame and available in three sizes, the Bighorn boasts the same sleek downtube which houses a large 720Wh capacity battery, featuring the latest Samsung 21700 cells for extended power and endurance.

Now, with the groundbreaking addition of smart technology, the Bighorn offers unparalleled connectivity through its integrated SIM module, running on the 4G network. Paired with the new Wattwheels app, users can access a range of features including bike diagnostics, theft reporting, and real-time tracking, with more innovations on the horizon.

The app is included for the first year in the price of the bike but after that it must be renewed yearly at a cost of $50 per year. Ofcourse if you don't want to use the app and just want to ride the bike you don't need to renew the app

(Note - You can'not upgrade to the app software with older bighorn models unfortunately)

Powered by the renowned Ananda M100 motor, delivering whisper-quiet operation and an impressive 120N.m of torque, conquering the steepest climbs is effortless. Coupled with the dependable 10-speed Shimano Deore drivetrain and Shimano hydraulic brakes, the Bighorn ensures a confident and smooth ride from start to finish.

Complete with essential accessories including mudguards, rear rack, front and rear lights, and now featuring color displays with integrated USB ports for convenient device charging, the Bighorn offers unparalleled versatility and functionality.

Another additon to the 24 models is the option to add a front rack for extra storage +$99RRP

Whether tackling iconic New Zealand trails or navigating city streets, the Bighorn stands as the ultimate universal bike, offering both performance and practicality for every journey.

Specifications

Motor Ananda M100 300Watt Motor(120N.m Torque) - Canbus system
Battery 48V15Ah 21700 Samsung Li-Ion Cells 5000Mah (720WH) Smart BMS
Frame Small , Med and Large(29r) in Low Step frames. (option to purchase front rack  - +$99)
Speed Up to 42km/r
Distance 35km Throttle only, 60-120+km Pedal Assist
Brakes Tektro Hydraulic 180mm Rotors (Small Frames have Shimano MT-200 Brakes)
Derailleur Shimano Deore 10 Speed  (Shadow plus)
Cassette Shimano 11-34 CS-HG500
Shifter Shimano Deore 10sp SL-M6000
Crankset Ananda Isis 44T, 170mm
Display Ananda D16 Colour Display with USB charge port
Front Fork Suntour XCM32/34 E-Bike rated with Boost & Lockout - 100mm Travel
Tyres Maxxis Ardent/Ikon 27.5 *2.25 - (29 on L 19inch model) or WTB Ranger
Charger Sans 48V3Ah Smart Charger
Seat Foam Velo  - Black
Smart Bike Yes - Runs an inbuilt sim module that can be paired with the Wattwheels App.
Chain KMC X10E EPT Anti Rust ebike Chain
Seat Post 31.60 Alloy
Hubs Novatech sealed bearing with boost
Rims Alexrims MD35 27.5/29 13G*36H
Handlebar Promax 680mm, 31.8, 10mm Rise (Sweep on Low step frames)
Grips Velo 140mm Lock On
Throttle Thumb Left hand (can be removed)
Hanger Sram UDH
Net Weight 24kg (battery + 3.75kg)
Colours Misty Blue, Moroccan Red or Deep Sea Blue
Warranty Full Comprehensive - 5 years frame, 2 years motor/battery/display and 12months on mechanical components
Weight Limit 130Kg Total weight
