Merida

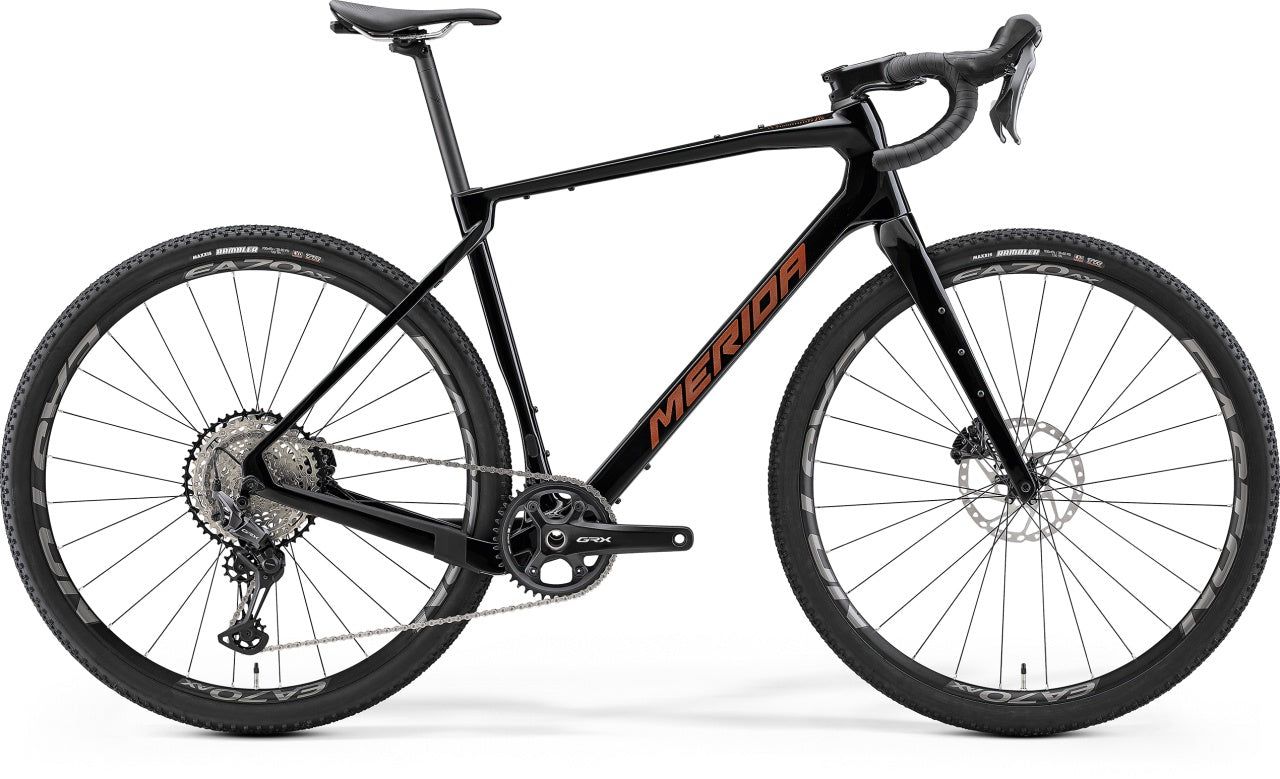

24 SILEX 7000 - BLACK(BRONZE/GOLD)
24 SILEX 7000 - BLACK(BRONZE/GOLD)
Regular price
$4,999.99 NZD
Regular price
Sale price
$4,999.99 NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
| FRAME | SILEX CF2 II |
| FORK | MERIDA SILEX II CF2 |
| BRAKES | Shimano GRX820 |
| ROTORS | Shimano RT64 |
| BRAKE LEVER | Shimano GRX820 |
| HEADSET | MERIDA 8158 |
| HANDLEBAR | MERIDA EXPERT GRII |
| HANDLEBAR STEM | MERIDA TEAM CC III |
| GRIP | MERIDA ROAD Expert |
| DERAILLEUR (R) | Shimano GRX822 |
| SHIFTERS | Shimano GRX820 |
| SEAT POST | MERIDA EXPERT CC |
| SEAT CLAMP | MERIDA EXPERT |
| SADDLE | MERIDA EXPERT SL |
| CHAIN | Shimano M7100 |
| CRANK | Shimano GRX820 |
| FREEWHEEL | Shimano CS-M7100 |
| BOTTOM BRACKET | Shimano SM-BBR60 |
| WHEELSET | Easton EA70 AX |
| TYRE FRONT | Maxxis Rambler |
| TYRE REAR | Maxxis Rambler |
| AXLES | MERIDA EXPERT TR |
| WEIGHT | 9.46 kg |
| MAX. WEIGHT | 120 kg |
Geometry
| FRAME SIZE | XS | S | M | L | XL |
| TYRE SIZES | 700 | 700 | 700 | 700 | 700 |
| ST SEAT TUBE [MM] | 440 | 470 | 500 | 530 | 560 |
| TT TOP TUBE [MM] | 550 | 565 | 580 | 600 | 620 |
| CS CHAIN STAY LENGTH [MM] | 430 | 430 | 430 | 430 | 430 |
| HTA HEAD TUBE ANGLE [°] | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| STA SEAT TUBE ANGLE [°] | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| BD BOTTOM BRACKET DROP [MM] | 75 | 75 | 75 | 75 | 75 |
| HT HEAD TUBE [MM] | 130 | 150 | 170 | 190 | 210 |
| FL FORK LENGTH [MM] | 415 | 415 | 415 | 415 | 415 |
| R REACH [MM] | 392 | 402 | 412 | 426 | 441 |
| S STACK [MM] | 570 | 588 | 607 | 626 | 645 |
| WB WHEEL BASE [MM] | 1048 | 1065 | 1082 | 1104 | 1126 |
| SH STAND OVER HEIGHT [MM] | 744 | 771 | 798 | 825 | 852 |
